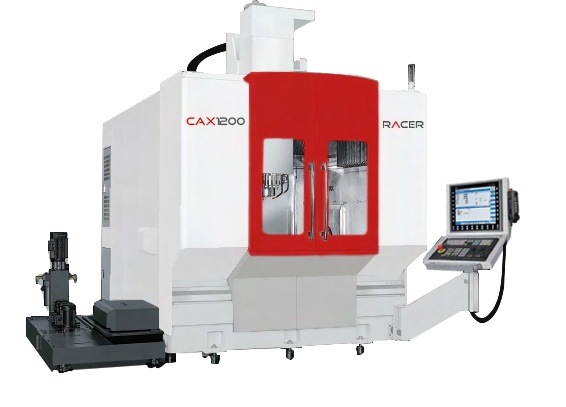

| MODEL | CAX-800 | CAX1000 | CAX-1200 |
| Double Driven Table | Double Driven Table | Double Driven Table | |
| WORK TABLE | |||
| Worktable Size (mm) | Ø800 | Ø1000 | Ø1200 |
| T-Slot | 14H11 x 7 | 14H11 x 7 | 14H8 x 12 |
| Max. Workpiece (mm) | Ø800 x H560 | Ø1000 | Ø1200 x H900 |
| Worktable Load (kg) | 1300 | 2000 | 2600 |
| MOVEMENT | |||
| X Axis Travel (mm) | 800 | 1000 | 1200 |
| Y Axis Travel (mm) | 1010 | 1010 | 1100 |
| Z Axis Travel (mm) | 650 | 850 | 1000 |
| Spindle Nose to Worktable (mm) | 150 ~ 800 | 150 ~ 1000 | 300 - 1250 |
| A Axis Rotating Angle | ± 120° | ± 120° | ± 120° |
| C Axis Rotating Angle | 360° | 360° | 360° |
| X/Y/Z Positioning Accuracy (mm) | +/- 0.004 | +/- 0.004 | +/- 0.004 |
| X/Y/Z Repeatability Accuracy (mm) | +/- 0.002 | +/- 0.002 | +/- 0.002 |
| A/C Positioning Accuracy (arc-sec) | +/- 8 | +/- 8 | +/- 8 |
| A/C Repeatability Accuracy (arc-sec) | +/- 4 | +/- 4 | +/- 4 |
| SPINDLE | |||
| Spindle Taper | CAT-50 / HSK-A63 | HSK-A63 | HSK-A100 |
| Max Spindle Speed (rpm) | 20000 | 20000 | 20000 |
| Spindle Drive Method | Built-in | Built-in | Built-in |
| Spindle Power (S1-100% / S6-40%) (kW) | 25 / 35 | ||
| FEEDS | |||
| Rapid Speed (X/Y/Z) (M/min) | 50 | 50 | |
| Cutting Feed (X/Y/Z) (M/min) | 20 | 20 | |
| A Axis Max Speed (rpm) | 60 | 60 | 50 |
| C Axis Max Speed (rpm) | 100 | 100 | 80 |
| A Axis Working Torque (R/M) (Nm) | 1040 / 2080 | 1040 / 2080 | 1040 x 2 / 2080 x 2 |
| C Axis Working Torque (R/M) (Nm) | 401 / 800 | 401 / 800 | 1040 / 2080 |
| A Axis Clamping Force (Nm) | 3200 | 3200 | 3200 x 2 |
| C Axis Clamping Force (Nm) | 2000 | 2000 | 3200 |
| A.T.C. | |||
| Tool Magazine | 64 std. / 96 / 120 | ||
| Max Tool Diameter & Empty Adjacent Tool (mm) | 125/245 | ||
| Max Tool Weight (kg) | 25 | ||
| CUTTING COOLANT SYSTEM | |||
| Coolant Thru Spindle | 20bar (380V / 50Hz 2.2kW / 60Hz 4.0kW) | ||
| 70bar (380V / 60Hz 5.5kW) | |||
| Chip Conveyor | Screw type 0.2kW x2 | ||
| Chain type / Scrape type 0.2kW | |||
| OTHERS | |||
| Power Consumption (kVA) | 75 | 100 | 120 |
| Machine Size (w/swinging Control Panel) (mm) | 5060 x 2405 x 3850 (64T) | 963 x 2240 x 3395 (64T) | 6440D x 5270W x 4862 H |
| Machine Weight (kg) | 19200 | 24500 | 29200 |
| MODEL | CAX-800 | CAX-800T | CAX-1000 | CAX-1200 | CAX-1200T |
| 20 Bar CTS w/Change-over Inline Filter | |||||
| Spindle Side Air Blow / Tool Unclamping Air Blow / | |||||
| Rotary-swivel Table | |||||
| Built-in Spindle | |||||
| Spindle Nose Coolant Jet Flushing & Front Side | |||||
| Extra Coolant Flushing Injection at Both Side of | |||||
| Spindle Cooling Unit | |||||
| Automatic Grease Lubrication System for Guideways | |||||
| 3 Axes Roller-type Guideway | |||||
| 64 Tool Magazine | |||||
| 96 Tool Magazine | |||||
| 120 Tool Magazine | |||||
| Chain Type Chip Conveyor | |||||
| A/C Axis with Heidenhain Angle Encoder | |||||
| Laser Tool Setting System | |||||
| Workpiece Measurement System and Calibration Ball | |||||
| Machine Window with Safety Glass | |||||
| Auto Power Off | |||||
| Z Axis Brake Motor Without Counter-balance Block | |||||
| Ethernet Port | |||||
| Rigid Tapping | |||||
| 3-Color Warning Lamp | |||||
| LED Work Lamp | |||||
| Tools & Tool Box | |||||
| Spray Gun | |||||
| CE/EMC Conformity | |||||
| Chip Cart | |||||
| Transformer | |||||
| Voltage Regulator | |||||
| Oil-mist Coolant System | |||||
| Cutting Fluid Cooling System | |||||
| Coolant Purification System | |||||
| Ballscrews with Internal Cooling System | |||||
| Absolute Type X, Y, Z Axes Optical Scale | |||||
| 50 bar or 70 bar CTS w/Paper Filter Tank & | |||||
| Tool Holder HSK-T100 | |||||
| Tool Holder CAPTO-C6 | |||||
| Tool Holder CAPTO-C8 |
