Twin spindle vertical CNC machining for diverse industrial applications.
| Feature | Specification |
|---|---|
| Table Size | 500mm x 1000mm |
| Spindles | Dual spindles, CAT 40 taper |
| Max. Spindle RPM | 8,000 RPM |
| Tool Storage Capacity | 16 tools |
| Positioning Accuracy | Axis positioning: ±0.0002", Axis repeatability: ±0.0001" |

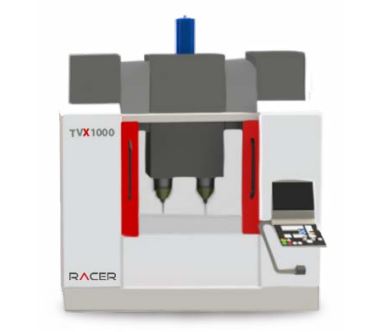

The TVX-1000 is a compact and efficient CNC machining center designed to deliver precise and reliable machining operations. Its dual-spindle configuration allows for simultaneous machining of multiple components, significantly enhancing productivity. The high-speed spindles, capable of reaching 8,000 RPM, ensure rapid metal removal rates and high-quality finishes.
The machine’s robust construction and precision components guarantee accurate positioning and repeatability, essential for producing parts with tight tolerances. The ample tool storage capacity allows for a wide range of cutting tools, enabling versatility in machining applications. The user-friendly controls make operation and programming straightforward, even for less experienced operators.
The TVX-1000 is ideal for a variety of industries, including automotive, aerospace, and manufacturing.
Custom sizes available.
Looking for more details?
TVX Series Machining Center Features
- Robust Construction: The machine’s sturdy design ensures durability and reliability under demanding conditions.
- Precise Positioning: The TVX-1000 offers accurate positioning with axis positioning accuracy of ±0.0002″ and axis repeatability of ±0.0001″.
- Ample Tool Storage: The machine can accommodate up to 16 tools, providing flexibility for different machining operations.
- User-Friendly Controls: The TVX-1000 features intuitive controls that simplify operation and programming.
- Efficient Cooling: The built-in coolant tank ensures proper cooling of the cutting tools and workpiece, improving machining performance.
Ideal Applications
Technical Data
TVX Series
| Model | Model TVX-1000 |
|---|---|
| TRAVEL SPECIFICATIONS | |
| Table Size | 500mm x 1000mm |
| X Travel | 1040mm |
| Y Travel | 508mm |
| Z Travel | 600mm |
| SPINDLE SPECIFICATIONS | |
| Number of Spindles | 2 |
| Spindle Taper | CAT 40 |
| Max RPM | 8,000 |
| Spindle Motor Power | 11kW |
| Distance between spindle | 460mm (18.1”) |
| FEEDS | |
| Maximum Feed (X, Y, Z) | up to 36 m/min |
| Tool Storage Capacity | 16 Tools x 2 |
| Max Length of Tool | 300 mm |
| Max Tool Diameter (All pods full) | 75 mm |
| Max Weight of Tool | 8 kg |
| MACHINE ACCURACY (X, Y, Z) | |
| Axis Positioning | +/- .0002" (.0050 mm) |
| Axis Repeatability | +/- .0001" (.0025 mm) |
| MISCELLANEOUS | |
| Air Requirement (Minimum) | 85 psi |
| Power Requirement | 60 KVA |
| Coolant Tank | 300 L |
| Machine Weight Approx | 8300 kg |
| Machine Dimensions Approx | 3600mm x 2520mm x 2800mm |
